Repairing a Mercedes-Benz air suspension system can be complex, and it’s important to diagnose the problem correctly to ensure the repairs are done correctly. Here are some steps that may be involved in repairing a Mercedes-Benz air suspension:
- Diagnosis: The first step in repairing a Mercedes-Benz air suspension is to diagnose the problem. This typically involves using a diagnostic tool to read the codes from the air suspension control module and visually inspect the air suspension components.
- Inspect for leaks: A visual inspection of the air suspension system should be carried out to check for any signs of leakage. If there is any leakage, it needs to be identified and repaired.
- Air Spring replacement: If the air springs are found to be damaged or leaking, they will need to be replaced.
- Compressor replacement: If the compressor is found to be malfunctioning, it will need to be replaced.
- Sensor replacement: If any of the height sensors or other sensors in the system are found to be malfunctioning, they will need to be replaced.
- Control module replacement: If the control module is malfunctioning, it may need to be replaced.
- Valve Block repair/replacement: If the valve block is found to be clogged or leaking, it may need to be repaired or replaced.
- Re-calibration: Once the repairs are completed, the air suspension system will need to be recalibrated. This typically involves adjusting the ride height and adjusting the suspension settings to match the vehicle’s specifications.
It’s important to note that these are general steps, and the specific repairs needed will depend on the particular problem with the air suspension system. Also, it is highly recommended that a trained professional mechanic should repair to avoid further issues.
What parts are the most common to fail

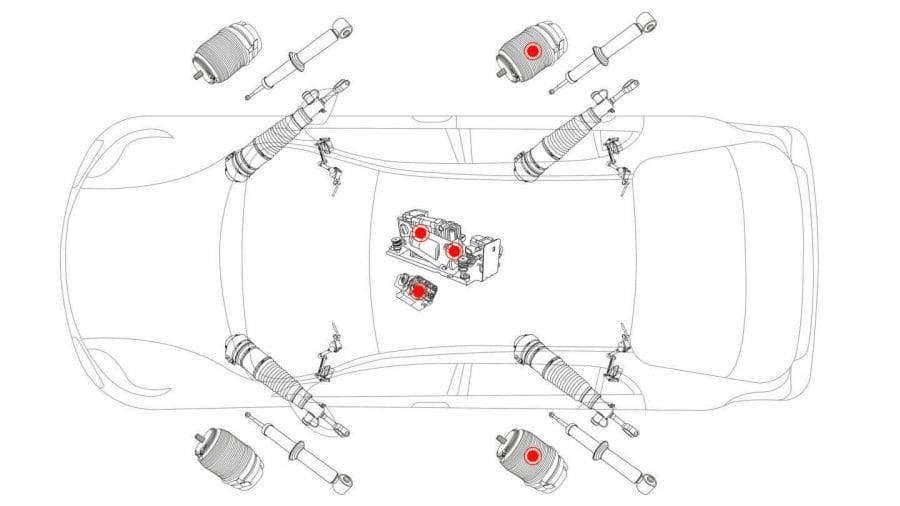

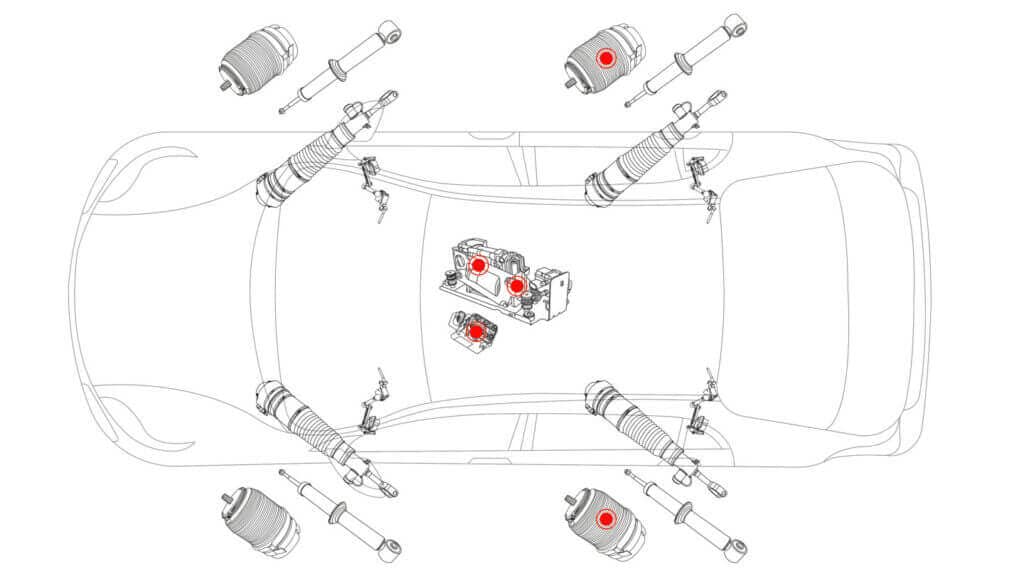

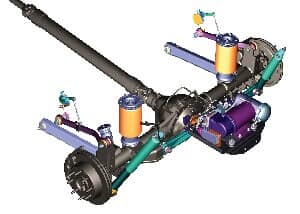

Several parts of a Mercedes-Benz air suspension system can malfunction or wear out over time. Some common problems include:
- Air Springs: The air springs are the inflatable bags that support the weight of the vehicle. They can leak or become damaged, resulting in a sagging or uneven ride.
- Compressor: The compressor is responsible for pumping air into the air springs. It can fail due to a variety of reasons, such as a faulty relay or a lack of lubrication. If the compressor fails, the air suspension will not be able to inflate the air springs.
- Height sensors: Height sensors are used to monitor the height of the vehicle and adjust the air suspension accordingly. If a height sensor fails, the air suspension may not be able to adjust the height of the vehicle correctly.
- Air suspension valve block: The valve block is responsible for directing air to the appropriate air spring, it can become clogged or leak, causing the air suspension to not work correctly.
- Leakage: In all air suspension systems, leakage is the leading cause of the malfunction. Any leakage in the system, whether it’s from the air springs or the compressor, will cause the system to lose pressure, leading to a sagging or uneven ride.
- Control module: The control module is the brain of the system, it controls the overall functions of the air suspension, it can malfunction or have worn out solder points, causing the system to not work as intended.
It’s important to note that all these parts are just examples of commonly reported issues, they are not the only parts that can fail in an air suspension system, and proper diagnosis is needed to determine the root cause of any problem.
How does a Mercedes-Benz ride with air suspension?
Mercedes-Benz vehicles with air suspension typically offer a smooth and comfortable ride. The air suspension system uses air springs, which are inflatable bags that support the vehicle’s weight, instead of traditional steel springs. Depending on the driving conditions and the driver’s preference, these air springs can be adjusted to provide a softer or firmer ride.
In normal driving conditions, the air suspension automatically adjusts the height and stiffness of the suspension to provide a comfortable ride. It can also lower the vehicle at high speeds for improved aerodynamics and handling. This provides a very smooth and comfortable ride, particularly on rough or uneven roads.
Some models equipped with more advanced air suspension systems like ABC (Active Body Control) will actively adjust the height and stiffness of the suspension depending on the road condition, driving style, and vehicle speed. This allows the car to achieve a smooth and stable ride and sporty handling when needed.
Additionally, some models also offer the option to adjust the height of the vehicle manually, this is useful when driving on different road surfaces, such as steep driveways or uneven terrain. This allows the driver to adjust the car’s height for better visibility and for better clearance for low-lying obstacles.
Overall, the Mercedes-Benz air suspension system provides a comfortable and stable ride, with the added benefit of adjusting the suspension for different driving conditions. They are generally considered one of the best air suspension systems on the market.
Mercedes Benz air suspension repair
Repairing a Mercedes-Benz air suspension system can be complex, and it’s essential to diagnose the problem correctly to ensure the repairs are done correctly. Here are some steps that may be involved in repairing a Mercedes-Benz air suspension:
- Diagnosis: The first step in repairing a Mercedes-Benz air suspension is to diagnose the problem. This typically involves using a diagnostic tool to read the codes from the air suspension control module and visually inspect the air suspension components.
- Inspect for leaks: A visual inspection of the air suspension system should be carried out to check for any signs of leakage. If there is any leakage, it needs to be identified and repaired.
- Air Spring replacement: If the air springs are found to be damaged or leaking, they will need to be replaced.
- Compressor replacement: If the compressor is found to be malfunctioning, it will need to be replaced.
- Sensor replacement: If any of the height sensors or other sensors in the system are found to be malfunctioning, they will need to be replaced.
- Control module replacement: If the control module is malfunctioning, it may need to be replaced.
- Valve Block repair/replacement: If the valve block is clogged or leaking, it may need to be repaired or replaced.
- Re-calibration: Once the repairs are completed, the air suspension system will need to be recalibrated. This typically involves adjusting the ride height and adjusting the suspension settings to match the vehicle’s specifications.
It’s important to note that these are general steps, and the specific repairs needed will depend on the particular problem with the air suspension system. Also, it is highly recommended that a trained professional mechanic should repair to avoid further issues.
Re-calibration
MB (Mercedes-Benz) Re-calibration of the air suspension refers to adjusting the air pressure in the air suspension system with the factory MB SD C4 Star Diagnostic Tool to ensure that the vehicle is at the correct ride height and that the suspension is working correctly. This process is typically done by a trained technician using specialized equipment to adjust the air pressure in the air springs and shocks. It may be necessary to re-calibrate the air suspension if the vehicle is not sitting at the correct ride height, if the suspension is not working properly, or if the vehicle has been modified in a way that affects the suspension.
